The RFID gantry is a large-scale RFID access control device for warehouses, suitable for installation at the entrances of large warehouses. It is compatible with forklift entry and exit, and is suitable for quickly recording the entry and exit of large stored goods, such as emergency supplies, home furnishings, and palletized goods. The product is equipped with 6 narrow-beam antennas, ensuring a controllable radio frequency range and preventing cross-reading within the warehouse, resulting in high accuracy. Goods can be quickly identified and displayed interactively on a screen. The product is suitable for identification at various warehouse entrances and exits, enabling efficient and traceable management of RFID goods.
Automatically identifies items using RFID contactless sensing;
Read data interacts with the backend in real time, triggering an alarm for any abnormal data;
Can identify more than 50 boxes of items at a time;
15.6-inch touchscreen for convenient on-site data management and anomaly handling.
|
Identification Method |
UHF RFID |
|
Touch Screen Spec |
15.6-inch capacitive touch screen |
|
Operating System |
Android |
|
System Configuration |
RK3568, 2G+32G |
|
RF Protocol Standard |
ISO 18000-6C |
|
Operating Frequency |
840-960MHz |
|
Antenna Quantity |
6 antennas, 12dB antenna gain (customizable) |
|
Identification Power |
0-33dBm (adjustable in steps of ±1dBm) |
|
Read/Write Tag Quantity |
Max.100 electronic tags (depends on tag performance/orientation, material/quantity of managed items, and movement speed) |
|
Read/Write Function |
Supports multi-tag identification, tag data filtering, and RSSI signal strength sensing |
|
Trigger Function |
Infrared-triggered reading |
|
Alarm Indicator |
1 tri-color indicator light |
|
Communication Method |
Ethernet port, USB, WIFI |
|
Overall Dimensions (WHD) |
3500mm*2600mm*60mm (customizable) |
|
Operating Temperature |
-20°C — 60°C |
|
Storage Temperature |
-20°C — 60°C |
|
Operating Voltage |
AC 220V 50Hz |

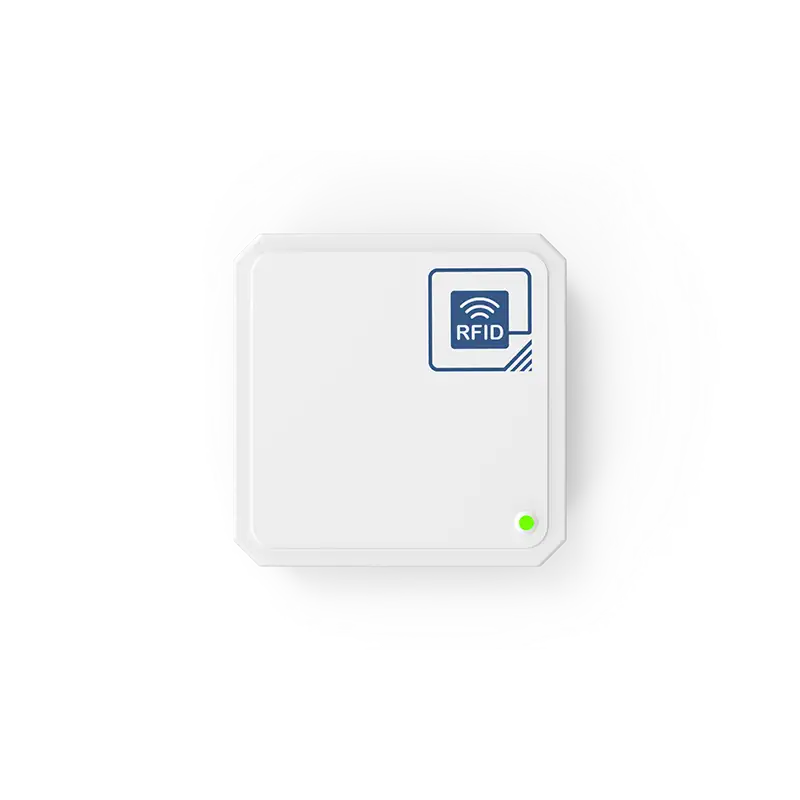

Independent of user programming language
Independent of user operating system
Built-in multi-scenario applications
External screen, touchscreen, keyboard, and mouse; integrated 4G/GPS
|
Physical Parameters |
|
|
Overall Dimensions |
280×280×40mm |
|
Total Weight |
≤3KG (packed) |
|
Body Material |
CNC aluminum alloy |
|
Communication Interfaces |
Wireless: 4G/5G (optional), Beidou/GPS positioning (optional), 1×RS-232, 1×485 (internal), 3×TTL serial ports (internal)Ethernet port: 1×RJ45, Ethernet 1000/100/10MbpsUSB ports: 2×USB2.0 TypeA (internal), 2×USB2.0 (internal), 1×TypeC (USB-OTG) |
|
Audio/Video Interface |
HDMI2.0, supports 4K/60FPS audio |
|
Cooling Method |
Air cooling |
|
Operating Current |
800mA ±5% @DC 12V Input |
|
Power Supply |
DC 9-36V (12V/24V recommended), POE+ 802.3at 25.5W (optional) |
|
Performance Parameters |
|
|
CPU |
High-performance 22nm process, quad-core ARM-A55 64-bit processor, up to 2.0GHz |
|
RAM/ROM |
4GB+32GB / |
|
AI+ |
1TOPS NPU AI computing power, GPU Mali-G52, Vulkan 1.1 |
|
Development Environment |
|
|
Operating System |
Android (Recommended) |
|
SDK |
Native SDK or API (Recommended; no deep device development required, data connection can be completed in 10 minutes) |
|
Development Languages |
Including but not limited to C, C#, Java, HTML5, Python |
|
Development Tools |
No restrictions |
|
Protocol Interaction |
Rich communication protocols available: http, mqtt, tcp, udp, serial port, etc. |
|
Operating Environment |
|
|
Operating Temperature |
-25°C ~ +65°C |
|
Storage Temperature |
-20°C ~ +85°C |
|
Operating Humidity |
10% ~ 95% |
|
Protection Level |
IP65 |
|
Data Communication |
|
|
Ethernet |
1000/100/10Mbps Ethernet, RJ45 port |
|
UHF Parameters |
|
|
Engine |
Domestic series |
|
Protocol Standard |
EPC global UHF Class 1 Gen 2 / ISO 18000-6c / ISO 18000-6B (optional) |
|
Frequency |
865-868MHz / 920-925MHz / 902-928MHz |
|
Power |
0-33dBm adjustable; reading distance depends on tag and gain antenna, up to 0-30 meters |
|
Output Power Accuracy |
+/- 1dB |
|
Output Power Flatness |
+/- 0.2dB |
|
Receiving Sensitivity |
< -85dBm |
|
Bulk Reading Rate |
> 400 times/sec (optional: > 1000 times/sec) |
|
Tag RSSI |
Supported |
|
Ambient Temperature Monitoring |
Supported |
|
Antenna Connection Protection |
Supported |
|
Antenna |
Supports multiple types of antennas, customizable |
|
Antenna Gain |
9dBi / 12dBi (optional) |
