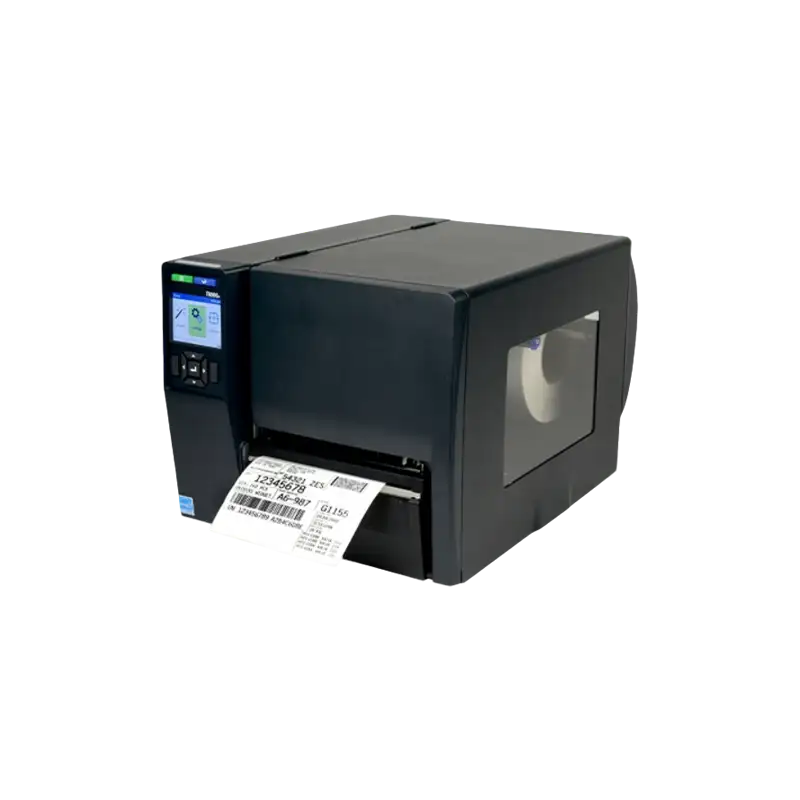

Label Printer

Introduction
Function
Parameter

The T6000e industrial printer series sets the standard for productivity and versatility in fast-paced work environments where speed, superior print quality, and advanced features such as RFID and real-time barcode verification are essential.

The T6000e is one of the most feature-rich printers on the market, boasting high printing speeds of up to 10,000 labels per day and the ability to print small labels at high resolution (600 dpi). It supports all major competitor printer languages, offers multiple connectivity options, remote printer management tools, and automatic alarms, ensuring your business operates at peak efficiency and productivity.

The acclaimed T6000e RFID prints and encodes on standard and metal-surface RFID tags and features automatic reprinting for tags that fail to encode correctly. An RFID upgrade kit is available for the standard T6000e model, providing customers with a more cost-effective solution that integrates RFID technology into their operations without upfront investment.

With its integrated barcode verifier, the T6000e eliminates compliance penalties and refunds resulting from non-compliant barcodes. This fully integrated solution features automatic recall, invalidation, and reprinting of defective labels. When used in conjunction with PrintNet Enterprise remote printer management software, it captures data and verifies printed labels, providing audit evidence for future use.

The T6000e offers unique capabilities: printing and encoding RFID tags while simultaneously performing barcode checks. This eliminates the need for two separate machines performing two entirely different functions, thereby increasing productivity and saving costs.

Processor: High-performance ARM Cortex-A9

Memory: 512MB RAM/128MB Flash

Model Size: 4-inch and 6-inch models

Print Resolution: Available in 203dpi, 300dpi, and 600dpi resolutions

Chassis: Die-cast aluminum frame with metal door

Printing Modes: Thermal transfer and thermal printing

Standard Interfaces: Standard Ethernet, USB, and serial interfaces

Wireless Module: Optional Wi-Fi 802.11a/b/g/n/ac

Model	T6000e 4-inch		T6000e 6-inch
Resolution	203dpi, 300dpi or 600dpi		203dpi or 300dpi
Print Mode	Direct thermal & thermal transfer
Max Print Speed	14ips @ 203dpi; 12ips @ 300dpi; 6ips @ 600dpi		12ips @ 203dpi; 10ips @ 300dpi
Max Print Width	4.1 inches (104mm)		6.55 inches (166.4mm)
Media Type	Roll or fanfold labels, paper, film, receipts
Media Handling	Standard: continuous, multi-strip tear-off, single-strip tear-off / Optional: peel, cut and rewind
Media Width	Min 1 inch (25.4mm); Max 4.5 inches (114.3mm)		Min 2 inches (50.8mm); Max 6.8 inches (172.7mm)
Media Thickness	0.002 inch (0.06mm) to 0.010 inch (0.268mm) / RFID max thickness 0.088 inch (2.2mm)
Media Length	99 inches (2,515mm)
Media Core Size	1.5 inches (38.1mm) to 3.0 inches (76.2mm)
Max Media Roll Diameter	8.0 inches (209mm)
Ribbon Type	Wax, wax/resin, resin
Ribbon Width	Min 1 inch (25.4mm) / Max 4.5 inches (114.3mm)		Min 2 inches (50.8mm) / Max 6.8 inches (172.7mm)
Ribbon Length	1476.4 feet (450m)
Ribbon Core Diameter	1.0 inch (25.4mm)
Interface/I/O	Standard: RS232 serial, USB and 10/100Base T Ethernet / Optional: Wi-Fi 802.11a/b/g/n/ac, GPIO, Parallel
Wi-Fi Security Encryption	WEP 40/128bit, WPA Personal (PSK), WPA2 Personal (PSK) Enterprise (AES CCMMP)
Wi-Fi Security Authentication	EAP-TLS, EAP-TTLS, PEAPv0/MS-CHAPv2, PEAPv1/EAP-GTC, LEAP
Remote Management Software	PrintNet Enterprise Suite, SOTI Connect: IoT device management
Memory	128 MB Flash / 512 MB DDR
Input Voltage	Auto-sensing 90 to 240 VAC (48 - 62 Hz)
Fonts	Font Technology: Intellifont, TrueType, Unicode Standard Fonts: OCRA, OCRB, Courier, Letter Gothic, CG Times, CG Triumvirate (Bold/Compressed) Asian Fonts (optional SD card): Simplified Chinese, Japanese, Korean Andale Fonts (optional SD card): Simplified Chinese, Traditional Chinese, Korean, Japanese PDF/PostScript Level 3: 35 fonts
Graphic Formats	PCX, TIFF, BMP, PNG
Barcodes	1D: BC-412, Code 11, Code 39, Code 35, Code 93, Codabar, Code128 Subsets A/B/C, Industrial 2 of 5, Interleaved 2 of 5, German I-2/5, EAN-8, EAN-13, UCC/EAN-128, UPC-A, UPC-E, UPCSHIP, UPS 11, MSI, Matrix 2 of 5, PLESSEY, POSTNET, 4-state PostBar, Australian 4-state, FIM, ITF14, Telepen, PLANET, USPS Intelligent Mail, LOGMARS 2D: PDF-417, MicroPDF-417, Maxicode, Data Matrix, QR Codes, Aztec, GS1 Databar (RSS-14)
Command Sets	IGP: PGL/VGL/ZGL/TGL/GL/STGL/DGL/IEGL/MGL/EGL Job Control: PIL and PTX-SETUP Optional: IPDS, TN5250, Postscript (Level 1.3)/PDF (Level 1.7) PMXL: Integrate printer status and real-time label information into third-party software
RFID	RAIN UHF Passive (GS1 EPC Gen2 v2 /ISO 18000-63)Fixed position antennaMin label/standard gap 0.625 inch (15.9mm)Metal shield thickness: 0.088 inch (2.2mm)Printer languages: PGL, ZGL, STGL, MGLCounter: Track good/repeated print labels		RAIN UHF Passive (GS1 EPC Gen2 v2 /ISO 18000-63)Fixed position antennaMin label/standard gap 0.625 inch (15.9mm)Metal shield thickness: 0.088 inch (2.2mm)Printer languages: PGL, ZGL, STGL, MGLCounter: Track good/repeated print labels
ODV-2D Integrated Barcode Verifier	Fully integrated barcode verifier, scores and reports all 1D/2D barcodes on each label in any orientation Grades per ISO 15415, 15416 and 15426 standardsPartial reprint of non-conforming labelsJob grading reports
Operating Environment	Operating Temp: 23°F to 104°F (-5°C to 40°C) (media limited) / Operating Humidity: 10 to 90% non-condensing Storage Temp: -40°F to 140°F (-40°C to 60°C) / Storage Humidity: non-condensing
Safety & Regulatory Certifications	RF: FCC, CE, CCC Safety: cTUVus, cTUV, CC, CE, BIS, BSMI, EAC, KC, NOM, RCM, S-MARK Environmental: RoHS, WEEE, Energy Star 3.0 RFID: FCC, CE, ANATEL, IC, KT, MIC, NCC, SRRC, WPC WiFi: FCC, CE, IC, SRRC
Dimensions (WxHxD)	11.7" (297.2mm) x 13" (330.2mm) x 20.5" (520.7mm)		13.4" (340.4mm) x 13" (330.2mm) x 20.5" (520.7mm)
Weight	37lbs (16.7kg)		40lbs (18.1kg)
Options & Accessories	Wi-Fi 802.11a/b/g/n/ac Parallel ports GPIO TN5250	PDF/PostScript IPDS ODV-2D Integrated Barcode Verifier	Bulk Rewind 4-inch/6-inch Tear-to-Use 4-inch/6-inch High-Strength Heavy Duty Cutter 4-inch/6-inch	Premium Asian or Andale font card QCMC (SD Quick Replacement Memory Card) RAIN UHF Passive (GS1 EPC Gen2v2/ISO18000-63)

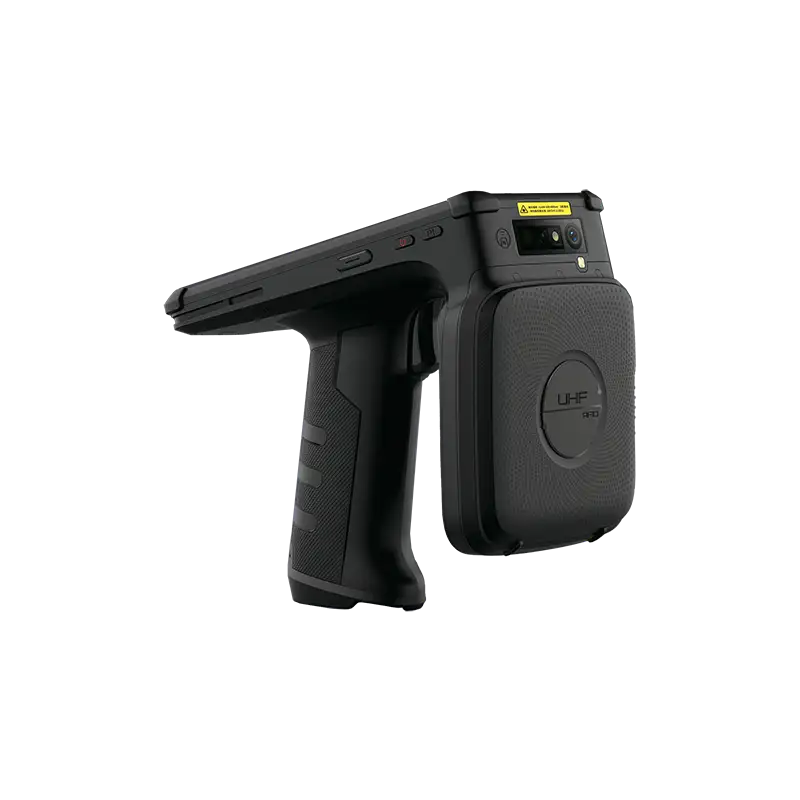

RFID Handheld Terminal

Parameter

Function 1	RFID Read/Write (UHF)
Read/Write Tags	Compliant with ISO-18000-6C/EPCC1G2
Antenna Parameters	5dBi circular polarization, default 902-928MHz
Operating Frequency	840-960MHz (customizable per national/regional regulations), default 902-928MHz
Operating Mode	Operates in Frequency Hopping Spread Spectrum (FHSS) or fixed-frequency transmission mode
Output Power	1~33dBm
Read Distance	≥10m @impinj H47 (actual distance subject to tag and environmental influences)
Write Distance	0~6m @9662 white card (actual distance subject to tag and environmental influences)
Bulk Read Speed	Up to 1300 reads/sec @impinj H47 (actual speed subject to tag and environmental influences)
Read Speed	Average read time per 32-bit word: 12ms
Write Speed	Average write time per 32-bit word: 60ms
Power Consumption	Average power <8W

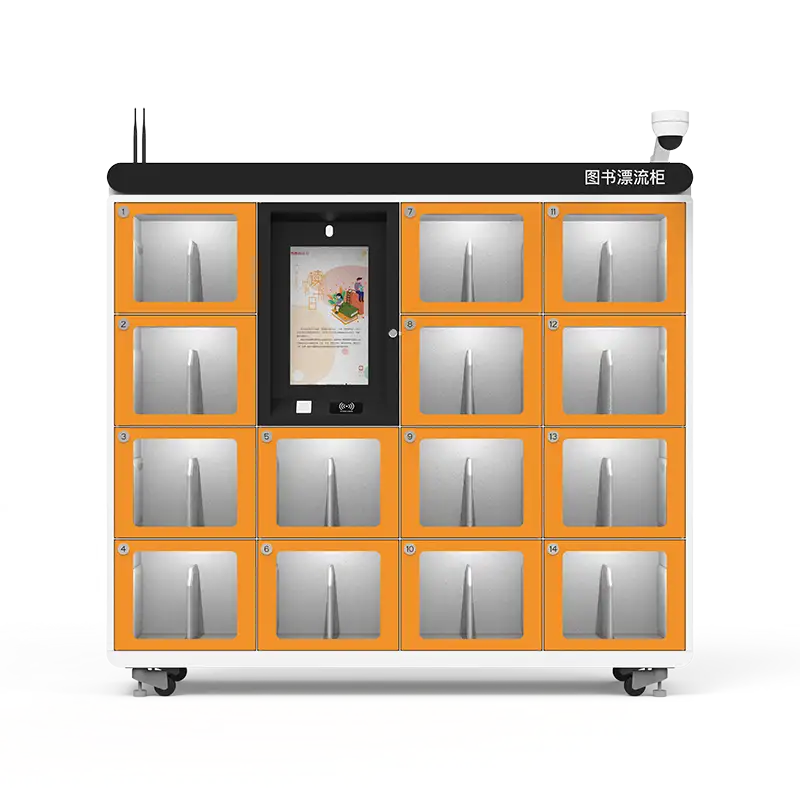

14-Slot Book-Sharing Lockers

Introduction
Function
Parameter

The book-sharing lockers offer 24/7 book borrowing, returning, and browsing services, utilizing UHF RFID technology for rapid, bulk identification of RFID tags. This simplifies the borrowing and returning process, making operation easy; returned books are automatically put back on the shelves, eliminating the need for staff. The system extends book lending to schools, communities, streets, stations, and other convenient locations for readers, providing better service.

By combining technology and reading, it breaks down the limitations of time and space, creating a cultural city where books are everywhere, and everyone can read anytime, anywhere.

Fully automated self-service: Readers can complete the entire process of searching, borrowing, returning, and renewing books via terminals, with voice guidance throughout, requiring no human intervention.

Automatic anomaly handling: In case of book recognition errors, storage space malfunctions, or reader mistakes during the borrowing/returning process, the system automatically triggers voice guidance, provides reminders, and resolves the issue, reducing manual intervention.

Multiple flexible return modes: Supports three core return modes to adapt to different user habits and equipment maintenance needs: Return to the original storage space, allowing users to return books to the corresponding storage space for convenient operation and easy future retrieval; Automatic allocation, where the system intelligently identifies storage space availability and automatically allocates books to areas with fewer storage spaces for balanced utilization; and Selective storage space return, allowing users to choose available storage spaces for flexible and convenient return, further enhancing the return experience.

Intelligent Book Borrowing and Return Recording: The system automatically records the time and movement of books for each borrowing and return, facilitating troubleshooting for administrators.

Real-time Equipment Monitoring: Supports comprehensive equipment monitoring. The backend can view the book storage status of each shelf and compartment in real time, accurately tracking the library's collection. It also clearly displays the online and offline status of equipment in each area, promptly alerting administrators to abnormal offline devices for quick troubleshooting and efficient maintenance, ensuring stable equipment operation.

Data Statistics and Rankings: The system automatically compiles book borrowing data and generates a real-time ranking of popular books, clearly displaying the most borrowed books. This helps readers quickly discover high-quality reading materials and provides data references for book procurement and storage adjustments, further improving the adaptability of reading services.

Multiple Intelligent Anti-theft Protection: Equipped with remote monitoring cameras, each book borrowing operation is automatically recorded and uploaded in real time for traceability. When an abnormal number of books borrowed in a single transaction is detected (multiple borrowings), the system automatically locks the reader's account, restricting subsequent borrowing operations, effectively preventing book theft and misappropriation, and comprehensively protecting the security of library assets.

Batch Operation Support: The backend supports administrators in batch importing book ISBN lists and personnel/department lists, reducing workload during registration; on the bookshelf side, administrators only need to access the shelving interface, select shelves, open doors, and batch place books to complete the shelving process.

Multimodal Biometric + Document Authentication System: Supports facial recognition (liveness detection) with a face recognition speed ≤0.3s, and card/QR code recognition speed ≤0.1s. Supports simultaneous authentication by multiple users, with no lag during peak hours.

End-to-End Remote Intelligent Operation and Maintenance: Supports remote scheduled power on/off and intelligent scheduled sterilization via mobile app; remote restart, remote firmware upgrade, and remote customer service fault diagnosis from the backend, reducing on-site maintenance.

Advertising Support: The device supports image and video advertising formats, and can flexibly embed various advertising content such as public service announcements, cultural promotions, and brand collaborations to adapt to different promotional needs. Ad playback duration and loop frequency can be set as needed, and remote updates of advertising materials are supported simultaneously, eliminating the need for on-site operation. It balances the dual value of reading service and promotional traffic generation, adapting to multi-scenario operational needs.

Multi-mode operation support: Compatible with various commonly used operation modes, flexibly adapting to different scenario needs: Supports annual membership fees, providing exclusive benefits for long-term readers and ensuring stable operating revenue; supports free access, contributing to the popularization of public reading and improving the coverage of public cultural services; meets the diverse needs of different user groups and operating scenarios.

Points redemption mode: Equipped with a comprehensive points system, users can accumulate points through various methods such as daily book borrowing, participating in platform reading activities, and completing reading tasks. Points can be queried in real time and are valid indefinitely; an optional gift cabinet is available, allowing users to redeem various gifts with accumulated points. The process is simple and convenient, stimulating user enthusiasm for reading, increasing user stickiness, and enriching the operating model.

Rapid deployment capability: Supports wired, wireless, and 4G (optional) network access; ready to use upon power-on, deployment time ≤ 2 hours, no complex construction required.

Full-scene environment adaptation: Adaptable to all types of scenarios such as schools, communities, streets, stations, airports, office buildings, and hospitals.

Physical Parameters
Operating System	Android7.1
Display Screen	21.5-inch capacitive touchscreen; 1920 x 1080 resolution
Interface/Communication	RJ45，WIFI，4G（Optional）
Shell Material	The carbon steel cabinet body is 1.2mm thick
Size	Overall Dimensions: 20004301820mm (LWH, including casters but excluding security camera) Single Cabinet Opening Dimensions: 400365335mm (LWH)
Capacity	14 squares, 20 books per square
Weight	≤320KG
Access Management	Facial recognition, QR code, and ID card swiping (IC card optional)
Camera	2MP Starlight Infrared Fixed-Focus Vandal-Proof Dome Network Camera（256G Micro SD 卡 )
Power Supply	AC220±10%
Operating Temperature	-10℃ ~ +50℃
Storage Temperature	-20℃ ~ +60℃
Ambient Humidity	5%RH ~ 95%RH（No condensation）
RFID UHF Data Acquisition
Support Agreement	EPC global C1G2(ISO18000-6C)
Supported Frequencies	920-925MHz/902-928MHz/865-868MHz
Output Power	0-33dBm(±1dBm)

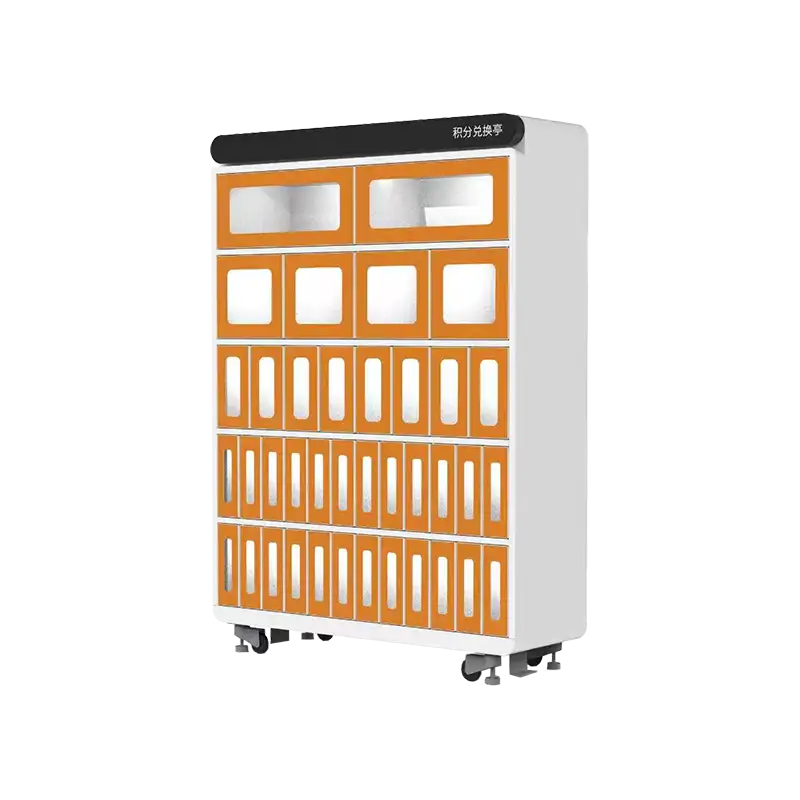

Gift Cabinet

Introduction
Function
Parameter

The gift cabinet, serving as a complementary unit to the book-sharing cabinet, provides users with a self-service option to redeem gifts using points. All operations are centrally managed by the main cabinet, requiring no manual intervention. This deeply integrates reading incentives with borrowing services, using points to redeem small gifts to enhance user engagement in reading and creating a complete service loop of "reading-points-redeem."

Real-time Data Linkage: Real-time data linkage with the main cabinet; after user identity verification, gift inquiry, and gift redemption at the main cabinet, the corresponding compartment is automatically unlocked.

Independent Compartment Management: Utilizing an independent compartment design, centrally controlled by the main cabinet, ensuring gift storage security and a convenient and efficient redemption process.

Flexible Backend Configuration: Administrators can flexibly set gift types and required points in the backend and directly add and remove gifts from the gift cabinet.

Points Redemption: Integrated into the book lending service system, users can redeem gifts themselves using reading points without additional steps.

Simple and Low-Cost: No additional screen required; simple and reliable structure reduces maintenance costs.

Multi-Scenario Adaptability: Adaptable to multiple scenarios such as campuses, communities, and public cultural venues, enhancing the service experience in synergy with the book exchange cabinet.

Product Model	CG414BZ-GF
Overall Dimensions	1300×430×1820mm (L×W×H, including casters)
Book Capacity	38 compartments
Operating Temperature	-10°C~50°C
Storage Temperature	-20°C~60°C
Power Supply	AC 220V±10%
Humidity Range	30%~95%RH

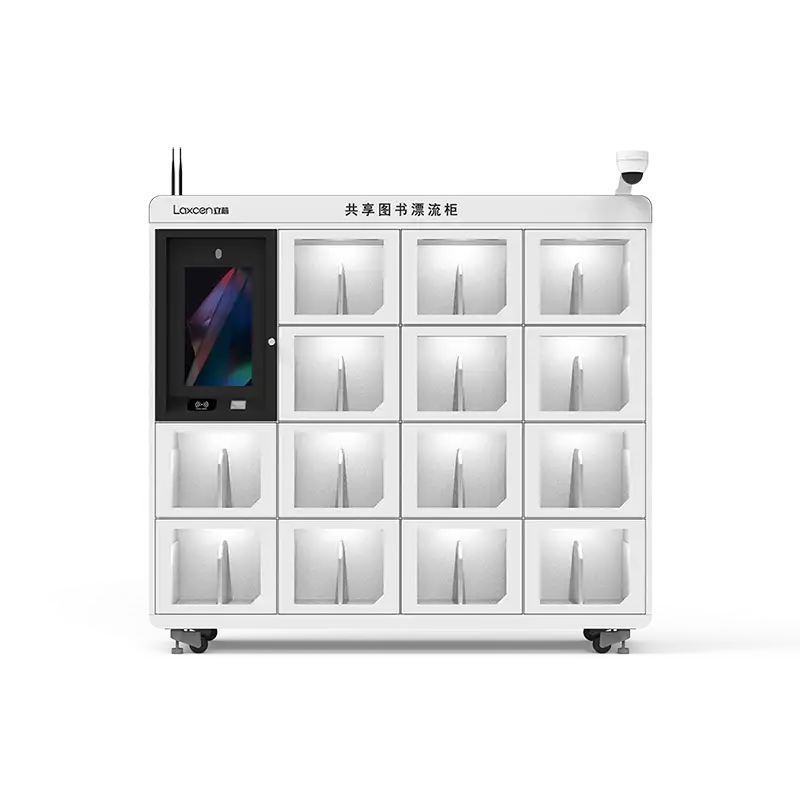

Book Sharing Cabinet

Introduction
Function
Parameter

The book sharing cabinet offer 24/7 book borrowing, returning, and browsing services, utilizing UHF RFID technology for rapid, batch identification of RFID tags. This simplifies the borrowing and returning process, making operation easy; returned books are automatically shelved, eliminating the need for staff.

The book-borrowing service extends to schools, communities, streets, stations, and other convenient locations, providing better service to readers. By combining technology and reading, it breaks down the limitations of time and space, creating a culturally rich city where books are everywhere and everyone can read anytime, anywhere.

Borrowing and Return Inquiry: Includes book borrowing, returning, and browsing inquiry functions.

Automatic Shelving: Features automatic book shelving and de-shelving.

Multiple Authentication Methods: Supports multiple authentication methods including ID card, campus card, facial recognition, and QR code.

Voice Guidance: User-friendly interface with voice guidance throughout the operation.

Video Management: Includes video management functions, automatically marking and storing reader borrowing and returning videos.

Remote Control: Supports remote device monitoring and management.

Data Analysis Reports: Automatic collection of circulation data, multi-dimensional data analysis, and provision of various graphical reports.

Product Model	CG414SZ
Overall Dimensions	2000×430×1820mm (including casters)
RFID Operating Frequency	860 ~ 960MHz
RFID Protocol Standard	ISO 18000-6C
Display Screen	21.5-inch capacitive touch screen
Host System	Android
Access Control	Standard ID card; optional: face recognition, ID card, QR code, reader card
Book Capacity	14 compartments, 20 books per compartment
Communication Interfaces	RJ45, WIFI, 4G (optional)
Operating Environment	Temperature: -10°C ~ 50°C, Relative Humidity: 5% ~ 85%RH (non-condensing)
Storage Environment	Temperature: -20°C ~ 50°C, Relative Humidity: 5% ~ 85%RH (non-condensing)
Power Supply	AC220V+10%

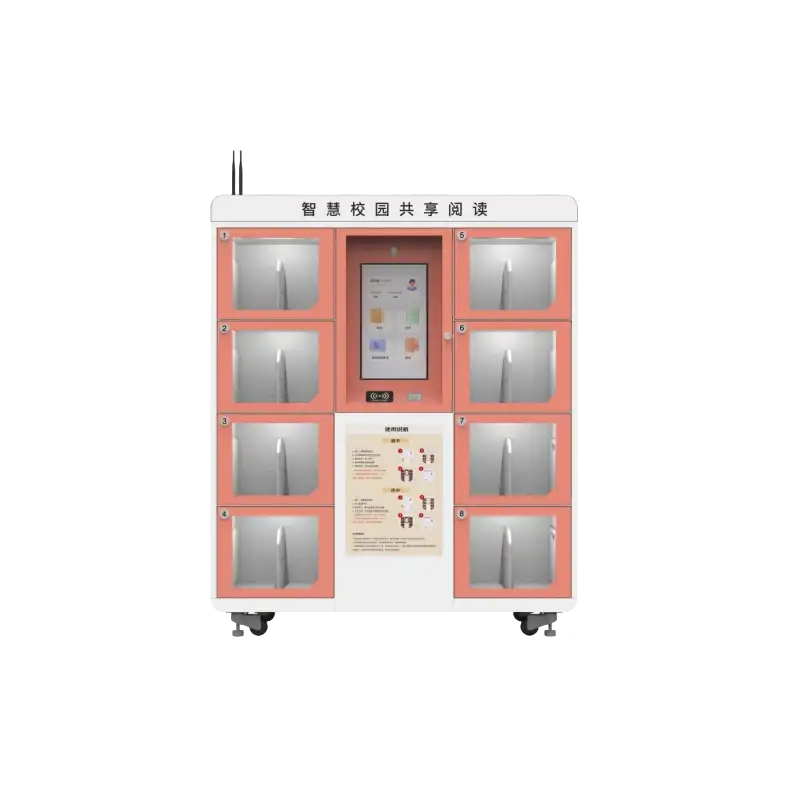

8-Slot Book-Sharing Lockers

Introduction
Function
Parameter

The book-sharing lockers offer 24/7 book borrowing, returning, and browsing services, utilizing UHF RFID technology for rapid, batch identification of RFID tags. This simplifies the borrowing and returning process, making operation easy; returned books are automatically shelved, eliminating the need for staff.

This extends book borrowing to schools, communities, streets, stations, and other convenient locations, providing better service to readers. By combining technology and reading, it breaks down time and space limitations, creating a culturally rich city where books are everywhere, and everyone can read anytime, anywhere.

Borrowing and Return Inquiry: Includes book borrowing, returning, and browsing inquiry functions.

Automatic Shelving: Features automatic book shelving and de-shelving.

Multiple Authentication Methods: Supports multiple authentication methods including, campus card, facial recognition, and QR code. User-friendly interface with voice guidance during operation.

Video Management: Includes video management functions, automatically marking and storing reader borrowing and returning videos. Supports remote device monitoring and management.

Data Analysis Reports: Automatically collects circulation data, performs multi-dimensional data analysis, and provides various graphical reports.

Product Model	CG408C
Overall Dimensions	1510×430×1820mm (including casters)
RFID Operating Frequency	860 ~ 960MHz
RFID Protocol Standard	ISO 18000-6C
Display Screen	21.5-inch capacitive touch screen
Host System	Android
Access Control	Standard ID card; optional: face recognition, QR code, reader card
Book Capacity	14 compartments, 20 books per compartment
Communication Interfaces	RJ45, WIFI, 4G (optional)
Operating Environment	Temperature: -10°C ~ 50°C, Relative Humidity: 5% ~ 85%RH (non-condensing)
Storage Environment	Temperature: -20°C ~ 50°C, Relative Humidity: 5% ~ 85%RH (non-condensing)
Power Supply	AC 100~240V, 50~60Hz
Power Consumption	80W

Intelligent File Precision Positioning Cabinet

Introduction
Function
Parameter

The intelligent file precision positioning cabinet enables refined management of files through a file management system. It facilitates rapid and accurate file entry and exit via a file management backend and handheld devices, and monitors the physical storage status of signature cards in real time, avoiding security blind spots and achieving digital and centralized signature card management. This product can store various types of files, including corporate business files, signature cards, personal loan business files, and account information.

Information Binding: Information registration and binding

Document Location: Document location query

Quick Inventory: Quick document inventory

Full Process Management: Document shelving, inbound/outbound, borrowing, and returning

Log Reports and Alerts: Full process log recording, report recording, and status alerts

Product Model	CS713M (Master Cabinet) / CS714S (Slave Cabinet)
Display Screen	15.6-inch touch screen
Host System	Android
Communication Interfaces	RJ45, RS-485
Inventory Method	PDA-based item-level inventory
Inventory Reading Rate	100%
Single Cabinet Configuration	7 tiers × 2 columns; Master cabinet: 13 doors, Slave cabinet: 14 doors; number of tiers customizable
Cascading Quantity	Max. 1 master cabinet + 9 slave cabinets in series
Sensing Module	Plug-in sensing, 100 sensors per door
Control Method	Automatic sensing control for file bag access
Storage Method	1–15 items per bag, one bag per storage location; dedicated connector for each storage unit
Storage Per Door	100 file bags (item-level positioning), up to 1,500 files
Light Source Type	High-brightness LED
Light Color	Red or green
Door Opening Method	Electromagnetic lock automatic door opening
Notification Method	Speaker, indicator light, automatic door opening
Power Supply	AC 100~240V, 50~60Hz
Power Consumption	50W per cabinet
Operating Environment	Temperature: -10°C ~ 40°C, Relative Humidity: 5% ~ 85%RH (non-condensing)
Storage Environment	Temperature: -20°C ~ 50°C, Relative Humidity: 5% ~ 85%RH (non-condensing)
Weight	Approx. 288kg
Floor Load Capacity	400kg/m²
Dimensions	1500×450×2180mm (including wheel height)

Intelligent File Precision Positioning Cabinet

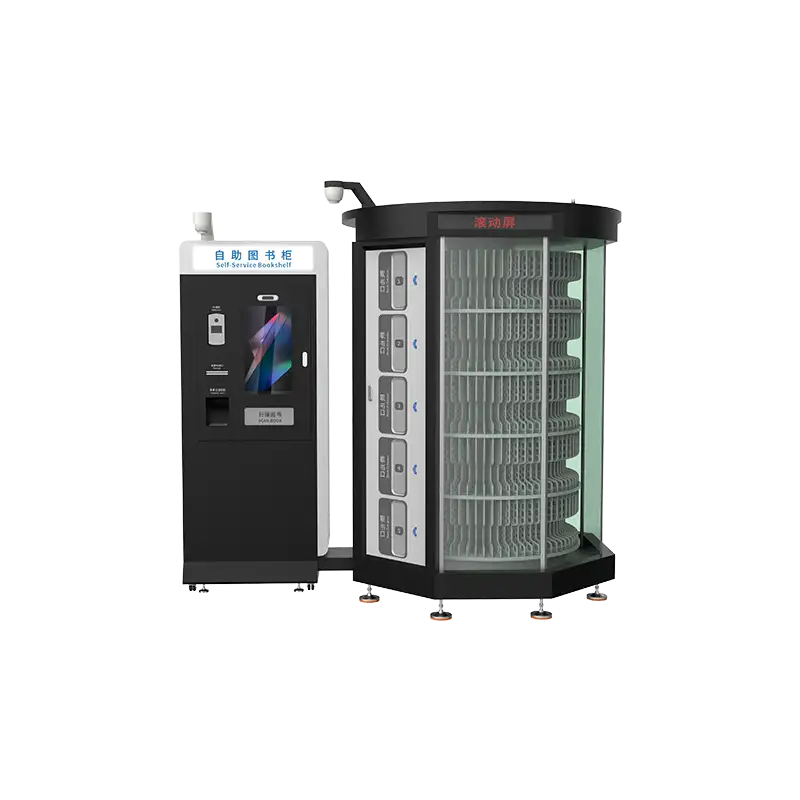

24-Hour Self-Service Library

Introduction
Function
Parameter

The LB-SL803T self-service library is an intelligent book service device based on RFID wireless radio frequency identification technology, enabling 24/7, unmanned, and intelligent extension of library services. Breaking through the time and space limitations of traditional libraries, the device can be flexibly deployed in various convenient scenarios such as squares, communities, subway stations, and school cafeterias, providing readers with convenient and nearby book services. It effectively solves the pain points of traditional libraries, such as long distances, inability to borrow books during closing hours, and cumbersome manual processes, making it a core device for service decentralization in the construction of smart libraries.

24/7 Self-Service: 24/7 self-service with no time restrictions.

Precise Identification: Utilizes RFID technology for highly efficient and accurate identification.

Multi-Mode Access Control: Offers flexible and convenient access control through various methods (face recognition/QR code scanning/card swiping).

One-Click Borrowing/Returning: Schedule book pickup or return, and unlock the door with a single click for easy operation.

Wide-Area Adaptability: Excellent environmental adaptability and wide deployment scenarios.

Physical Parameters
Operating System	Windows
Display Screen	21.5-inch capacitive touchscreen
Interface/Communication	RJ45，USB
Size	Main Cabinet: 2100mm(H)865mm(L)400mm(D) (excluding camera) Secondary Cabinet: 2300mm(H)1650mm(L)1650mm(D) (excluding camera)
Capacity	400 copies
Access Management	Standard configuration includes ID card payment; optional configurations include facial recognition, QR code, and library card.
Printer	Print receipt (optional)
Camera	Surveillance cameras
Power Supply	AC220±10%
Operating Temperature	-10℃ ~ +50℃
Storage Temperature	-20℃ ~ +60℃
Ambient Humidity	5%RH ~ 95%RH（No condensation）
RFID UHF Data Acquisition
Support Protocol	EPC global C1G2(ISO18000-6C)
Supported Frequencies	920-925MHz/902-928MHz/865-868MHz
Output Power	0-33dBm(±1dBm)

UHF RFID Medical Consumables Cabinet Main Cabinet

Introduction
Function
Parameter

The UHF RFID medical consumables cabinet is a product specifically designed for intelligent management of operating rooms in medical institutions. It combines advanced RFID (Radio Frequency Identification) and IoT (Internet of Things) technologies. The product is characterized by its forward-thinking approach, practicality, convenience, and security. Using this product allows for real-time monitoring of consumable inventory status, effectively improving the efficiency of medical consumables management.

Access Control: The main cabinet integrates facial recognition, IC/ID dual-frequency card swiping, and fingerprint recognition; the secondary cabinet integrates IC/ID dual-frequency card swiping and fingerprint recognition.

Efficient RFID Management: Provides unique RFID code management, multi-tag anti-collision identification, and a maximum of 300 consumables per cabinet.

Transparent Tray Storage: Acrylic transparent trays support storage management for boxed and hanging single-item goods.

Flexible Compartment Design: The main and secondary cabinets can be freely adjusted for easy storage of boxed/hanging consumables.

Intelligent Consumable Management: Automatic inventory management for consumables entering and leaving the cabinet, with real-time inventory status query.

Convenient Operation Interface: Graphical operation client, providing standard software interface, and voice prompt function.

Business Scenario Expansion: Integrated QR code scanning window, which can be expanded to include surgical procedures and other business scenarios.

Optional Security Monitoring: Optional surveillance cameras can be added to enhance consumable security management.

Optional UV Disinfection: UV disinfection lamps can be added inside the cabinet.

Product Model	Tiered Main Cabinet CS801M / Tiered Sub-Cabinet CS801S / Hanging Main Cabinet CS301M / Hanging Sub-Cabinet CS301S
RFID Protocol Standard	ISO18000-6C
RFID Operating Frequency	860MHz~960MHz
Display	15.6-inch capacitive touch screen
Main Cabinet System	Android
Communication Interface	RJ45, WIFI
Operating Environment	Temperature: -10°C~40°C; Relative Humidity: 5%~85%RH (non-condensing)
Storage Environment	Temperature: -20°C~50°C; Relative Humidity: 5%~85%RH (non-condensing)
Door Lock	Electromagnetic lock control
Internal Lighting	LED white light
Power Supply	AC 100~240V, 50~60Hz
Power Consumption	Main cabinet: 60W, Sub-cabinet: 40W
Dimensions	800×940×2050mm

UHF RFID Medical Consumables Cabinet Main Cabinet

UHF RFID Medical Consumables Cabinet CS801S

Introduction
Parameter

The UHF RFID medical consumables cabinet is a product specifically designed for intelligent management of operating rooms in medical institutions. It combines advanced RFID (Radio Frequency Identification) and IoT technologies. The product is forward-thinking, practical, convenient, and secure. Using this product allows for real-time monitoring of consumable inventory status, reducing losses from expired consumables and optimizing the consumables billing process.

It supports multi-level cabinet cascading to meet the management needs of different types of consumables within departments. The cabinet can accommodate guide rail partitions. The cabinet door can be opened independently using fingerprint or card recognition, allowing multiple people to operate simultaneously; the main cabinet also supports facial recognition and QR code recognition. Combined with UHF RFID technology, it enables end-to-end management of high-value consumables procurement, warehousing, usage, billing, and settlement, ensuring that each step is traceable, controllable, and accountable. The inventory process is fully digitalized, customized, and self-service.

Dimensions	800×940×2050mm; Internal Dimensions: 667×770×1700mm; Tray Dimensions: 621×700×135mm
Operation Screen	15.6-inch full HD Android touch screen on main cabinet, supports 1D and 2D code recognition
RFID Management	Provides RFID unique code management
Lock Control	Dual control of electromagnetic lock & electronic lock
Internal Lighting	LED white light (lights on when door opens, turns off when door closes)
Multi-Factor Authentication & Permission Management	Supports face login, fingerprint and card swipe login; multiple users can operate different cabinet doors independently at the same time
Access Management	Automatic tracking management for consumables in/out of cabinet
Tray Layers	5-tier tray design for large-capacity storage (stores up to 300 boxes of consumables; adjustable tiers facilitate storage of various sizes of consumables)
Batch Item Identification	Multi-tag anti-collision identification
Inventory Management	Automatic inventory management
Expiry Management	Consumable expiry alert management
Inventory Query	Real-time inventory status query
Emergency Support	Emergency door release device (ensures access to consumables in emergencies)
Base Structure	Independent caster wheels with leveling feet (balances stability and mobility)
Operation Interface	Graphical operation client
Software Interface	Provides standard software interface
Camera Monitoring	Optional, enhances consumable security management
UV Disinfection Lamp	Optional (meets hospital requirements)

UHF RFID Medical Consumables Cabinet CS301S

Introduction
Parameter

The UHF RFID medical consumables cabinet is a product specifically designed for intelligent management of operating rooms in medical institutions. It combines advanced RFID (Radio Frequency Identification) and IoT (Internet of Things) technologies. The product is forward-looking, practical, convenient, and secure. Using this product allows for real-time monitoring of consumable inventory status, reducing losses from expired consumables and optimizing the consumables billing process.

It supports multi-level cabinet cascading to meet the management needs of different types of consumables within departments. The cabinet can accommodate guide rail partitions. The cabinet door can be opened independently using fingerprint or card recognition, allowing multiple people to operate it simultaneously. Combined with UHF RFID technology, it enables end-to-end management of high-value consumables procurement, warehousing, usage, billing, and settlement, ensuring that each step is traceable, controllable, and accountable. The inventory process is fully digitalized, customized, and self-service.

Dimensions	800×940×2050mm
Internal Dimensions	667×770×1700mm, max compatible catheter box length: 1200mm
Authentication Method	Fingerprint, card swipe
Dense Storage	5 rows of hooks, 1 layer of tray; maximum capacity 190 consumables
Door Opening Direction	Supports left/right opening (to be specified when placing an order)
Lock Control	Dual control of electromagnetic lock & electronic lock
Internal Lighting	LED white light (lights on when door opens, turns off when door closes)
Monitoring Camera	Optional
Remote Management	Supported
Batch Item Identification	Multi-tag anti-collision identification
Inventory Management	Automatic inventory management
Expiry Management	Consumable expiry alert management
Inventory Query	Real-time inventory status query
Emergency Support	Emergency door release device (ensures access to consumables in emergencies)
Base Structure	Independent caster wheels with leveling feet (balances stability and mobility)
Camera Monitoring	Optional, enhances consumable security management
UV Disinfection Lamp	Optional (meets hospital requirements)

UHF RFID Medical Consumables Cabinet CS301S

Smart Security Access Control

Introduction
Function
Parameter

The SG-11 (single-channel)/SG-12 (dual-channel) intelligent access control system is a high-performance electronic tag gate. The system supports the EPCC1G2 (ISO18000-6C) protocol, and both main and auxiliary doors are equipped with high-gain antenna arrays. Based on a high-speed reader/writer, it can quickly detect multiple tags passing through the channel and trigger audible and visual alarms for illegal tags. The system has a built-in infrared sensor for bidirectional counting of people entering and exiting, and displays the number of people entering and exiting, temperature and humidity, alarm information, etc., on an embedded 10.1-inch Android screen.

The system directly interfaces with a software platform via an R45 interface to report detection data, record detailed information on all entry and exit records and exit times, and allows for multi-dimensional statistical queries. The system also provides flexible I/O interfaces for easy integration with turnstiles, surveillance video systems, automatic doors, and other equipment.

Multi-Tag Detection: Capable of simultaneously detecting one or more tags, reducing book theft rates.

Cost reduction and Efficiency Improvement: Reduces the need for excessive security personnel, lowering labor costs and improving the borrowing environment.

Two-Way Visitor Flow Statistics: Supports two-way statistics of people entering and exiting the library, allowing librarians to understand visitor flow.

Dual-Mode Operation: Supports online and offline working modes, stable and reliable, easy to use, and can be used continuously 24 hours a day.

Sensitivity: Utilizes RFID technology with alarm indicator lights, providing sensitive response and reliable security.

Linkage: Can be linked with access control systems for door opening and closing, and can monitor and implement alarm capture functions.

Expandability: Real-time offline storage of data such as visitor flow, alarm counts, system faults, and system environment for each channel, facilitating offline and online data upload and analysis to a PC.

Infrared Trigger: Supports infrared trigger activation; detection begins when a reader is detected, and it enters standby mode when no one is passing through, achieving energy saving and reducing the possibility of false alarms.

Product Model	SG-11 (Single Channel) / SG-12 (Dual Channel)
Operating Frequency	860~960MHz
Compliance Standard	ISO 18000-6C
Power Supply	AC 100~240V, 50~60Hz
Power Consumption	45W
Device Reliability	>10000 hours
Single Channel Width	800-1500mm
Dual Channel Width	2000mm
Screen Size	10.1-inch capacitive screen, resolution 1280*800, aspect ratio 16:10
Single Unit Dimensions (HWL)	1496.5mm150mm370mm
Communication Interface	Ethernet port, USB
Operating Environment	Temperature: -10°C~50°C; Relative Humidity: 5%~85%RH (non-condensing)
Storage Environment	Temperature: -20°C~60°C; Relative Humidity: 5%~85%RH (non-condensing)
Indicators & Alarm	Red LED alarm light, blue LED status light, audible alarm
Installation Method	Expansion screw fixed installation
Color Version	White
