Smart Security Access Control

Introduction
Function
Parameter

The SG-11 (single-channel)/SG-12 (dual-channel) intelligent access control system is a high-performance electronic tag gate. The system supports the EPCC1G2 (ISO18000-6C) protocol, and both main and auxiliary doors are equipped with high-gain antenna arrays. Based on a high-speed reader/writer, it can quickly detect multiple tags passing through the channel and trigger audible and visual alarms for illegal tags. The system has a built-in infrared sensor for bidirectional counting of people entering and exiting, and displays the number of people entering and exiting, temperature and humidity, alarm information, etc., on an embedded 10.1-inch Android screen.

The system directly interfaces with a software platform via an R45 interface to report detection data, record detailed information on all entry and exit records and exit times, and allows for multi-dimensional statistical queries. The system also provides flexible I/O interfaces for easy integration with turnstiles, surveillance video systems, automatic doors, and other equipment.

Multi-Tag Detection: Capable of simultaneously detecting one or more tags, reducing book theft rates.

Cost reduction and Efficiency Improvement: Reduces the need for excessive security personnel, lowering labor costs and improving the borrowing environment.

Two-Way Visitor Flow Statistics: Supports two-way statistics of people entering and exiting the library, allowing librarians to understand visitor flow.

Dual-Mode Operation: Supports online and offline working modes, stable and reliable, easy to use, and can be used continuously 24 hours a day.

Sensitivity: Utilizes RFID technology with alarm indicator lights, providing sensitive response and reliable security.

Linkage: Can be linked with access control systems for door opening and closing, and can monitor and implement alarm capture functions.

Expandability: Real-time offline storage of data such as visitor flow, alarm counts, system faults, and system environment for each channel, facilitating offline and online data upload and analysis to a PC.

Infrared Trigger: Supports infrared trigger activation; detection begins when a reader is detected, and it enters standby mode when no one is passing through, achieving energy saving and reducing the possibility of false alarms.

Product Model	SG-11 (Single Channel) / SG-12 (Dual Channel)
Operating Frequency	860~960MHz
Compliance Standard	ISO 18000-6C
Power Supply	AC 100~240V, 50~60Hz
Power Consumption	45W
Device Reliability	>10000 hours
Single Channel Width	800-1500mm
Dual Channel Width	2000mm
Screen Size	10.1-inch capacitive screen, resolution 1280*800, aspect ratio 16:10
Single Unit Dimensions (HWL)	1496.5mm150mm370mm
Communication Interface	Ethernet port, USB
Operating Environment	Temperature: -10°C~50°C; Relative Humidity: 5%~85%RH (non-condensing)
Storage Environment	Temperature: -20°C~60°C; Relative Humidity: 5%~85%RH (non-condensing)
Indicators & Alarm	Red LED alarm light, blue LED status light, audible alarm
Installation Method	Expansion screw fixed installation
Color Version	White

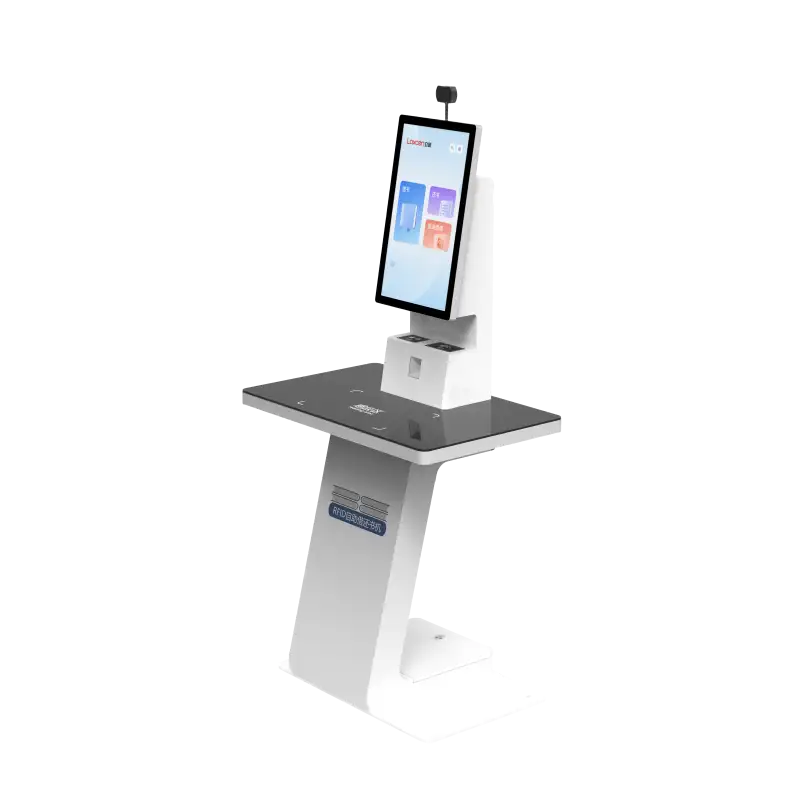

Self-Service Book Borrowing and Returning Machine

Introduction
Function
Parameter

The LB-M05 self-service book borrowing and returning machine is an integrated high-performance RFID reader/writer platform. It can handle the lending and returning of items with RFID tags, offering convenience, speed, and a highly responsive design with an average operation time of no more than 5 seconds. This product is suitable for managing books, archives, tools, and other items.

This product significantly reduces the workload of manual verification. The accompanying software system allows for the export of reports for analysis and provides functions such as searching, retrieving, and modifying information.

Wear-resistant and Waterproof: Tempered glass panel, wear-resistant and waterproof.

Convenient Borrowing: Features QR code scanning; mobile phone can be linked as a library card, and the process can be photographed and saved without a password, simplifying the process.

User-Friendly Design: Provides a platform for storing bags and other personal items.

Flexible Configuration: Flexible and simple parameter configuration to meet personalized needs.

Modular Expansion: Can be embedded with modules such as ID cards and campus cards without affecting aesthetics.

Status Visualization: Provides device status indicator lights for clear device status monitoring.

Function Expandability: Can be expanded into an RFID + EM dual device.

Face Recognition Borrowing: Can integrate a face recognition module for direct "face scan" borrowing.

Product Model	LB-M05
RFID Protocol Standard	ISO18000-6C
RFID Operating Frequency	860MHz~960MHz
Display	21.5-inch capacitive touch screen
Host System	Android
Communication Interface	RJ45, USB, WIFI
Operating Environment	Temperature: -10°C ~ 50°C; Relative Humidity: 5% ~ 85%RH (non-condensing)
Storage Environment	Temperature: -20°C ~ 60°C; Relative Humidity: 5% ~ 85%RH (non-condensing)
Power Supply	AC 100~240V, 50~60Hz
Power Consumption	45W
Dimensions	800×500×1600mm

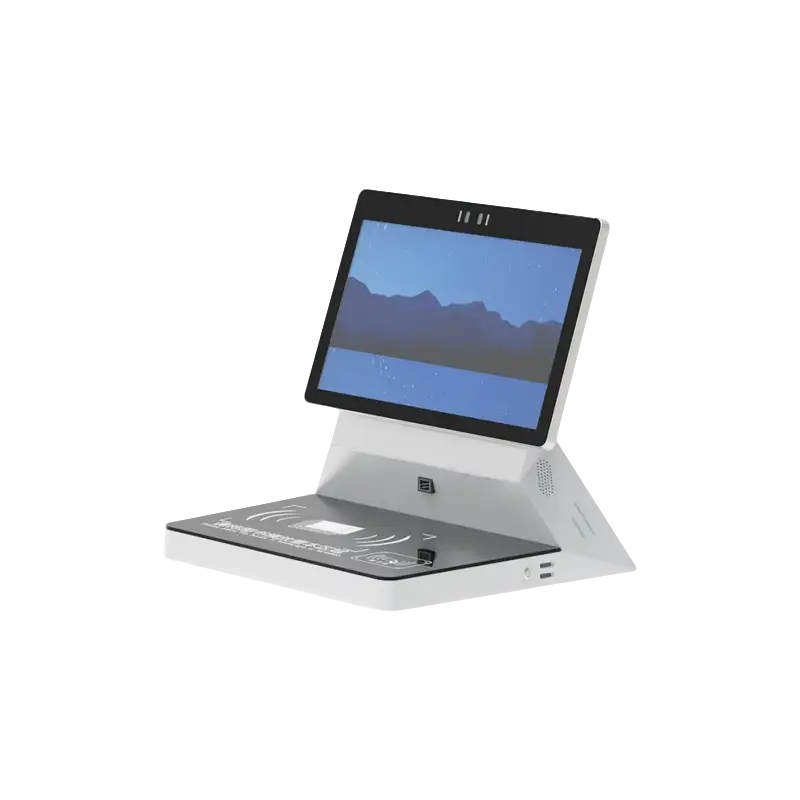

UHF Librarian Workstation All-in-One Machine

Introduction
Function
Parameter

The librarian workstation primarily involves book management and tag conversion technology operation. It can be equipped with library management system software, electronic tag processing software, book borrowing and returning software, and other corresponding operating software for data entry, reader information tag conversion, and self-service borrowing and returning. This improves equipment utilization and the work efficiency of management personnel.

The librarian workstation breaks through the traditional manual management methods of registration, querying, and inventory. It adopts RFID intelligent identification technology for contactless identification of documents with RFID tags, achieving security and accountability. It enables security control, records entry and exit, and traceability, and can verify identity through multiple authentication methods. The equipment also boasts advantages such as user-friendly human-computer interaction, strong interactivity, and stable performance.

Multiple Authorization Login Methods: The device can be equipped with multiple authorization login methods, such as: facial recognition (binocular), ID card recognition, employee card recognition, etc.

Excellent Human-Computer Interaction: Strong human-computer interaction; the device is equipped with a 21.5-inch capacitive touch screen for guided operation.

High-Efficiency RFID Identification: Fast RFID identification speed and high accuracy.

Rich Communication Methods: Can integrate multiple communication methods: RJ45, WiFi, 4G, etc.

Seamless System Compatibility: Compatible with existing management systems, achieving seamless integration.

Fully Self-Service Management: Self-service management eliminates the need for manual registration and recording by administrators.

Display	21.5-inch capacitive touch screen
Communication Protocol	ISO18000-6C / EPC Global Class 1 Gen2
Operating Frequency	860MHz–960MHz
IC Card Reader	Standard
Binocular Face Camera	Standard
Laser Barcode Scanner	Standard
Communication Interface	2×USB, 1×Ethernet port; WiFi and Bluetooth module (optional)
Complete Machine	534×514×526mm(L×W×H)
Data Transmission	TCP/IP, HTTP
Weight	±25KG
PIR Motion Sensor	Optional
Operating Temperature	-10°C ~ 50°C
Storage Temperature	-20°C ~ 60°C

UHF Librarian Workstation All-in-One Machine

RFID Tag Registration Machine

Introduction
Parameter

The LB-TR28 integrates a high-performance near-field antenna and prevents tags from being misread or miswritten except in areas directly above the device. It features a lightweight, clean, and aesthetically pleasing design. It can quickly and non-contactly identify RFID tags affixed to items, read multiple tags simultaneously, and employs an advanced anti-collision algorithm for powerful tag processing capabilities. It also boasts stable performance and strong anti-interference capabilities, making it primarily suitable for reading and writing tags in libraries, archives, supermarkets, and similar settings.

Physical Parameters
Dimensions	370×280×25.5 mm
Main Material	Aluminum plate, glass
Device Weight	2000g
Communication Interface	USB
Data Communication
Operating Frequency	(860-960 MHz) Customizable frequency band as required
China Frequency	920-925 MHz
US Frequency	902-928 MHz
Europe Frequency	865-868 MHz (ETSI EN 302 208)
Other Frequencies	Other multi-country frequency standards (customizable)
Engine	Integrated high-performance reader-writer module
Protocol Standard	EPC C1 GEN2 / ISO18000-6C
Data Acquisition
Reading Distance	0-10cm (configurable as per requirements)
Writing Distance	0-10cm (configurable as per requirements)
Indicator Lights	Power, power amplifier, and tag writing result indicator lights
Device Functions	Tag registration and information binding functions
Usage Environment
Operating Environment	Temperature: -10°C~50°C, Relative Humidity: 5%~85% RH (non-condensing)
Storage Environment	Temperature: -20°C~60°C, Relative Humidity: 5%~85% RH (non-condensing)

Tag Converter

Introduction
Parameter

The LX-LB-W03 tag converter integrates a high-performance near-field antenna and prevents tags from being misread or miswritten except in areas directly above the device. It features a lightweight, neat, and aesthetically pleasing design. It can quickly and non-contactly identify RFID tags affixed to items, read multiple tags simultaneously, and employs an advanced anti-collision algorithm for powerful tag processing capabilities. It is characterized by stable performance and strong anti-interference capabilities, and is primarily used for reading and writing tags in libraries, archives, supermarkets, and similar settings.

Operating Frequency	902~928MHz
Compliance Standard	ISO18000-6C
Integrated Module	High-performance Impinj R500 reader module
Reading Distance	0-10cm (configurable as per requirements)
Writing Distance	0-10cm (configurable as per requirements)
Housing Material	ABS body with aluminum back plate
Communication & Power Interface	miniUSB interface (for both communication and power supply)
Indicator Lights	Power, power amplifier, and tag writing result indicator lights
Rated Power	15W
Tag Function	Supports tag conversion function
Data Process	Supports tag data entry workflow
Identification Capability	Quickly identifies RFID tags attached to items; supports multi-tag simultaneous reading
Development Resources	Complete software development resources: DEMO source code, API, help documentation, and communication protocol documentation
Dimensions	210×210×10mm
