Catering-Laxcen Technology Inc.

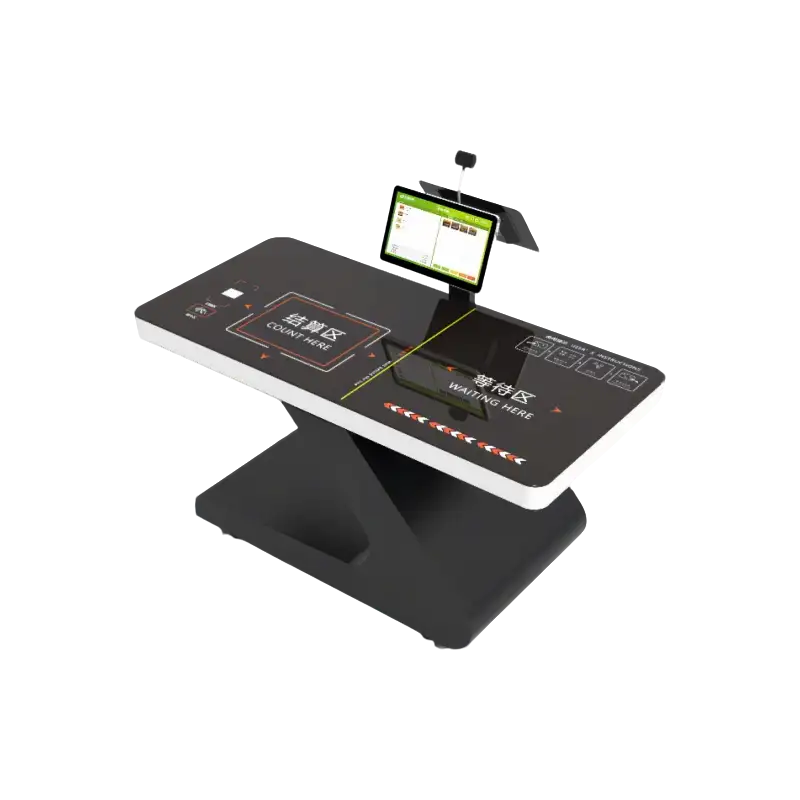

Smart Catering Settlement Counter

Introduction
Function
Parameter

The DC815B smart restaurant checkout counter integrates RFID, IoT, and wireless technologies to meet the needs of various group catering restaurants and smart canteens. It supports multiple unmanned self-service checkout methods, including card payment, QR code payment, and facial recognition payment. Compact in size, aesthetically pleasing, low in maintenance costs, and highly efficient in operation, it can easily achieve unmanned or single-person restaurant management. The entire system is based on the Android platform, ensuring high reliability and providing restaurants with a safe, stable, and reliable checkout environment.

Multiple Payment Methods: Supports various payment methods including card payment, QR code payment, and facial recognition payment.

Custom Refund: Allows users to add custom items and amounts, supporting on-the-spot refunds.

Automatic Data Update: Supports automatic updates of facial and card data, eliminating the need for complex operations.

Facial Recognition Payment is Optional: The facial recognition payment function allows users to choose between a seamless payment mode or a confirmation payment mode. Simple configuration and easy-to-use instructions are provided on the table to guide diners.

Printer Compatibility: Compatible with various USB interface printers, providing receipt printing functionality. Real-time collection and statistics of sales data, generating multi-dimensional statistical reports for management personnel to query sales data.

Product Model	DC815B (Left Settlement Area) / DC815BM (Right Settlement Area)
RFID Protocol Standard	ISO15693
RFID Operating Frequency	13.56MHz
Display Screen	Dual 15.6-inch capacitive touch screens, supporting dual-screen independent display, resolution: 1920×1080
Host System	Android
Communication Interface	RJ45, WIFI
Payment Methods	QR code payment, face recognition payment, IC/ID dual-frequency card payment
Operating Environment	Temperature: -10°C ~ 40°C, Relative Humidity: 5% ~ 85%RH (non-condensing)
Storage Environment	Temperature: -20°C ~ 50°C, Relative Humidity: 5% ~ 85%RH (non-condensing)
Power Supply	AC100~240V, 50~60Hz
Power Consumption	40W
Overall Dimensions	1500×830×1150mm
Countertop Dimensions	1500×700×800mm
Settlement Area Dimensions	420×320mm
Weight	Approx. 115kg

Embedded Catering Checkout Counter

Introduction
Function
Parameter

The DC647A embedded restaurant payment counter is a restaurant payment system integrating RFID technology. It is suitable for providing payment services in school canteens, corporate restaurants, fast-food chains, and other similar venues. Compared to traditional payment methods, it offers advantages such as speed, accuracy, superior user experience, and unattended operation.

The embedded payment counter requires minimal modification to existing restaurant facilities, occupies little space, and can be quickly deployed. It integrates multiple self-service payment methods, including card payment, QR code payment, and facial recognition payment. The facial recognition payment function allows users to choose between a seamless payment mode or a confirmation payment mode, supporting automatic updates of facial and card data without complex operations. It collects and analyzes sales data in real time, generating multi-dimensional statistical reports for management personnel to query. Users can customize the addition of dishes and amounts, supports on-the-spot order refunds, and is compatible with various USB interface printers, providing receipt printing services. Its user-friendly design ensures simple and efficient operation.

Speed Up and Reduce Time: Increases checkout speed, saving time on calculating and inputting menu prices.

Precise Error Prevention: Improves checkout accuracy, effectively preventing human error.

High Efficiency and Fast Flow: Enables automated checkout, effectively accelerating customer flow and improving work efficiency.

Transparent Pricing: The price of each dish and the total price are clearly displayed on the screen, ensuring clear and transparent pricing.

High Checkout Efficiency: One order per 2 seconds, rapid checkout, reduced queuing, less congestion, and increased efficiency.

Low Investment, High Returns: Improved checkout methods and efficiency attract more customers. Adopting an intelligent checkout system not only saves labor costs and improves checkout efficiency, enhancing the restaurant's image, but also increases brand awareness among consumers.

Product Model	DC647A
RFID Protocol Standard	ISO15693
RFID Operating Frequency	13.56MHz
Display Screen	Dual 10.1-inch capacitive touch screens, support dual-screen different display, resolution: 1280×800
Host System	Android
Communication Interface	RJ45, WIFI
Payment Methods	QR code payment, face recognition payment, IC/ID dual-frequency card payment
Operating Environment	Temperature: -10°C ~ 40°C, Relative Humidity: 5% ~ 85%RH (non-condensing)
Storage Environment	Temperature: -20°C ~ 50°C, Relative Humidity: 5% ~ 85%RH (non-condensing)
Power Supply	AC100~240V, 50~60Hz
Power Consumption	40W
Countertop Dimensions	736×516×70mm
Display Base Dimensions	260×260×400mm
Settlement Area Dimensions	420×310mm
Recommended Table Cutout Dimensions	700×480×120mm
Weight	Approx. 40kg

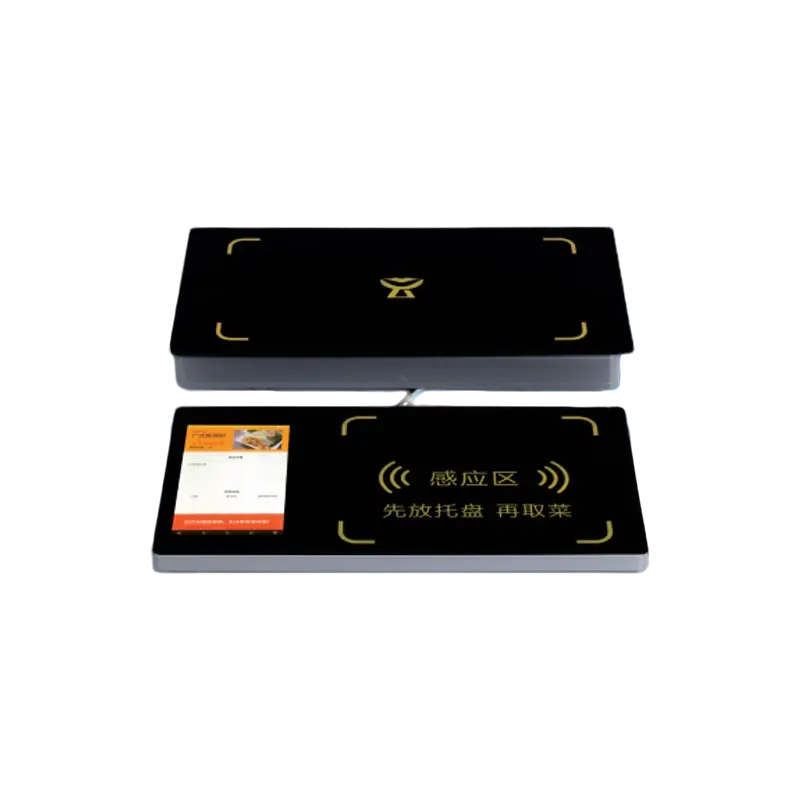

Weighing-Type Catering Checkout Counter

Introduction
Function
Parameter

The DW675A weighing-type catering checkout counter is a restaurant payment system integrating RFID technology. It primarily provides self-service dining for canteens in hospitals, schools, and enterprises. By embedding a weighing module at the bottom of the intelligent food selection counter and using an RFID-identified tray, it achieves rapid payment.

Compared to traditional payment methods, the weighing and billing system offers advantages such as speed, accuracy, superior user experience, and unattended operation.

Seamless Payment Improves Efficiency: Seamless payment enhances service efficiency.

Cost Reduction and Efficiency Enhancement: Saves labor costs and reduces operating expenses.

Healthy Dining Solutions: Nutritional statistical analysis guides users towards healthy eating habits.

Low-Cost Operations: Eliminates settlement errors and improves user satisfaction.

Product Model	DW675A
RFID Protocol Standard	ISO15693
RFID Operating Frequency	13.56MHz
Display Screen	10.1-inch capacitive touch screen, Resolution: 1280×800
Host System	Android
Communication Interface	RJ45, WIFI, USB
Payment Method	Air Payment
Weighing Sampling Rate	12Hz/50Hz
Reading/Writing Time	< 100ms
Operating Environment	Temperature: -10°C ~ 40°C, Relative Humidity: 5% ~ 85%RH (non-condensing)
Storage Environment	Temperature: -20°C ~ 50°C, Relative Humidity: 5% ~ 85%RH (non-condensing)
Operating Power Supply	AC100~240V, 50~60Hz
Power	40W
Weighing Area Size	595×315×95mm
Tray Area Size	595×315×33mm
Sensing Area Size	330×270mm
Weight	Approximately 25kg

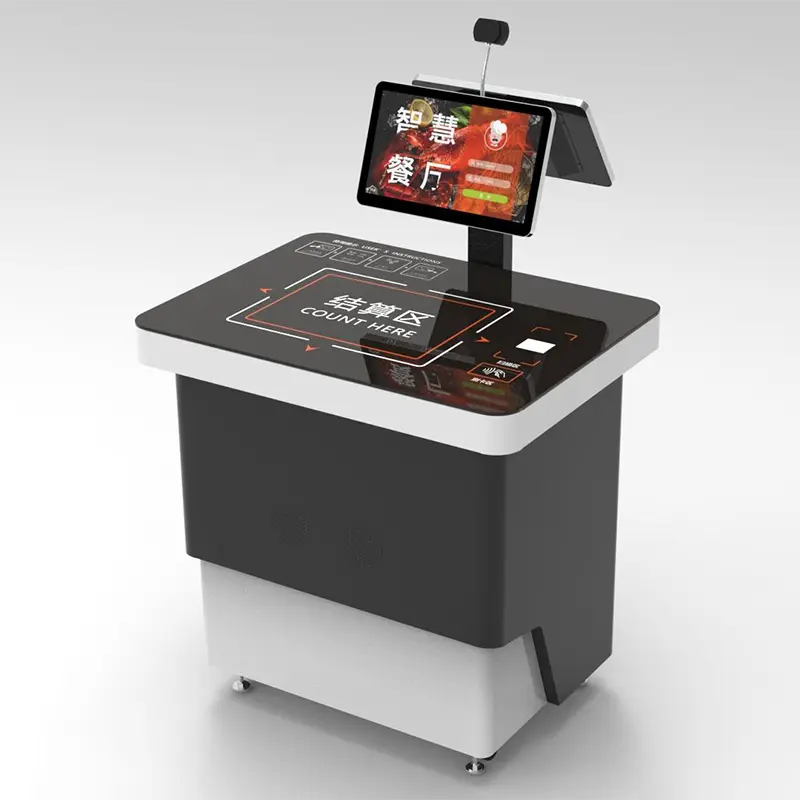

Small Catering Checkout Counter

Introduction
Function
Parameter

The DC808A small catering checkout counter is suitable for restaurants with limited space and cramped environments. Its compact size, attractive appearance, and rapid deployment make it ideal for quick setup. It boasts low maintenance costs and high operational efficiency, easily enabling unmanned or single-person restaurant management. This mini restaurant checkout counter integrates RFID, IoT, and wireless technologies, offering multiple self-service payment methods such as card payment, QR code payment, and facial recognition payment. The entire system is based on the Android platform, ensuring high reliability and providing restaurants with a fast, efficient, and reliable checkout environment.

Compact and Efficient: The device is small in size and requires little space, making it suitable for rapid deployment. It allows for quick passage by a single operator, reducing queuing time.

Smart Payment: Enables a fast, convenient, and efficient payment experience through facial recognition, card swiping, and QR code payments, improving the management efficiency of canteen or restaurant staff.

Efficient and Stable Operation Design: Allows for customizable addition of dishes and amounts, supports on-the-spot order refunds, and automatically updates facial and card data. The user-friendly design eliminates the need for complex operations, making it simple and efficient.

Function Expansion: Can be expanded with various USB interface printers, providing the function of printing receipts.

Data Management: Collects and analyzes sales data in real time, generating multi-dimensional statistical reports for managers to query.

Product Model	DC808A
RFID Protocol Standard	ISO15693
RFID Operating Frequency	13.56MHz
Display Screen	Dual 15.6-inch capacitive touch screens, supporting dual-screen different display, Resolution: 1920×1080
Host System	Android
Communication Interface	RJ45, WIFI
Payment Method	QR code payment, face recognition payment, IC/ID dual-frequency card swiping payment
Operating Environment	Temperature: -10°C ~ 40°C, Relative Humidity: 5% ~ 85%RH (non-condensing)
Storage Environment	Temperature: -20°C ~ 50°C, Relative Humidity: 5% ~ 85%RH (non-condensing)
Operating Power Supply	AC100~240V, 50~60Hz
Power	40W
Overall Dimension	800×730×1150mm
Countertop Dimension	800×600×800mm
Settlement Area Dimension	420×320mm
Weight	Approximately 48kg

Intelligent Weighing Payment and Food Collection Machine

Introduction
Function
Parameter

The DW675A intelligent weighing payment and food collection machine is a high-performance self-service catering payment product. Its tray sensing area supports the ISO15693 protocol, enabling millisecond-level tray recognition. A 10.1-inch touchscreen display shows current food information, remaining weight, and real-time weighing and payment information; it also features a three-color alarm light to detect equipment malfunctions and supports both audible and visual alarms.

The system supports RS45 and Wi-Fi communication, directly interfacing with software platforms to upload order settlement data. Consumers can select their desired dishes, take the amount they need, and pay by weight. After completing their meal, they can pay via over-the-air payment.

Consumption on demand: Consumers take only what they need, reducing waste.

Self-service checkout: completed via cloud platform over-the-air interface, eliminates checkout queues.

High sensitivity: The sensing area uses RFID technology, ensuring high responsiveness and reliability.

Wide applicability: Suitable for parks, businesses, schools, government offices, self-service restaurants, fast food outlets, etc.

Scalable: Provides nutritional analysis data and related reports.

Item	Details
Product Model:	DW675A Weighing Settlement Desk
Performance Configuration:	Android7 Cortex-A7 Quad-core, max. main frequency 1.2GHz, 1G+8GB storage
Operating Frequency:	13.56MHz
Compliance Standard:	ISO15693
Power Supply:	DC12V 2.5A
Screen Size:	10.1-inch capacitive touch screen, resolution 1280*800, aspect ratio 16:10
Weighing Area Size:	60030090mm (Indicator light and drool mask not included)
Sensing Area Size:	60031050mm
Communication Interface:	RJ45, WIFI
Operating Environment:	Temperature: -10°C ~ 50°C, Relative Humidity: 5% ~ 85%RH (non-condensing)
Storage Environment:	Temperature: -20°C ~ 60°C, Relative Humidity: 5% ~ 85%RH (non-condensing)
Provided:	Tri-color alarm light (red, yellow, green)
Installation Method:	Desktop placement
Color Version:	Black
