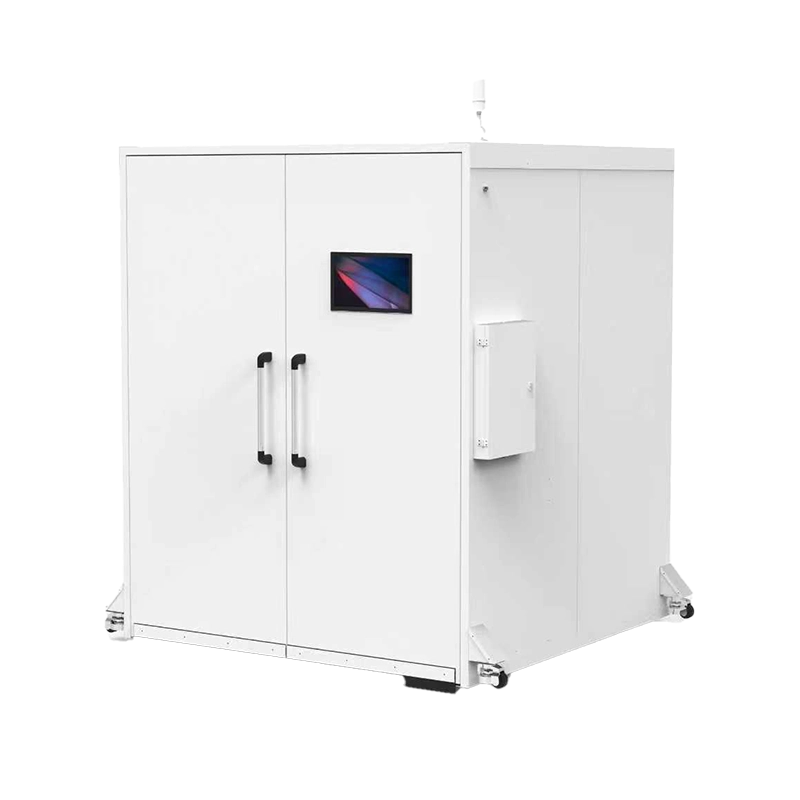

An RFID inventory room is a closed inventory environment that integrates ultra-high frequency (UHF) RFID reading and writing equipment, antenna arrays, shielding structures, and intelligent software systems. It can realize fully automatic, high-precision, and batch identification and inventory of all items with (UHF) RFID tags entering the inventory area, greatly improving inventory management efficiency and reducing labor costs.
Automatically categorized and statistically analyzed by SKU.
Automatically compares system inventory with actual inventory results, highlighting discrepancies.
Three-color alarm lights indicate anomalies.
Warehouse inbound and outbound inventory counts, apparel and footwear inbound and outbound inventory counts.
Supports integration with enterprise ERP/WMS systems.
| Product Model | LB-H-D01 |
| OperatingFrequency | 840-960MHz (Supports frequency bands in China, the United States, Europe, and other regions) |
| Communication Protocol | ISO/IEC 18000-6C |
| Operating System | Android 7 (2GB RAM + 16GB ROM) |
| Double Doors | Double doors, with a 15.6-inch capacitive touchscreen. |
| Number of Antennas | Eight sets of 9dBi circularly polarized antennas (customization available upon request). |
| Recognition Accuracy | ≥99.8% (500-800 pieces, under standard testing conditions) |
| Inventory Speed | ≥200 tags/second, whole-house inventory time ≤10 seconds |
| Shielding Structure | Metal shielding |
| Communication Interface | WIFI、RJ45 |
| Work Environment | -10°C to 65°C, relative humidity: 10% to 90%RH (non-condensing) |
| Storage Environment | -20°C to 80°C, relative humidity: 10% to 90%RH (non-condensing) |
| Operating Power Supply | AC100-240V, 100W |
| Installation Method | Fixed installation, cannot be moved |
| External Dimensions | 1700mm*1700mm*2050mm (Length*Width*Height) |
| Product Weight | Approximately 400KG |

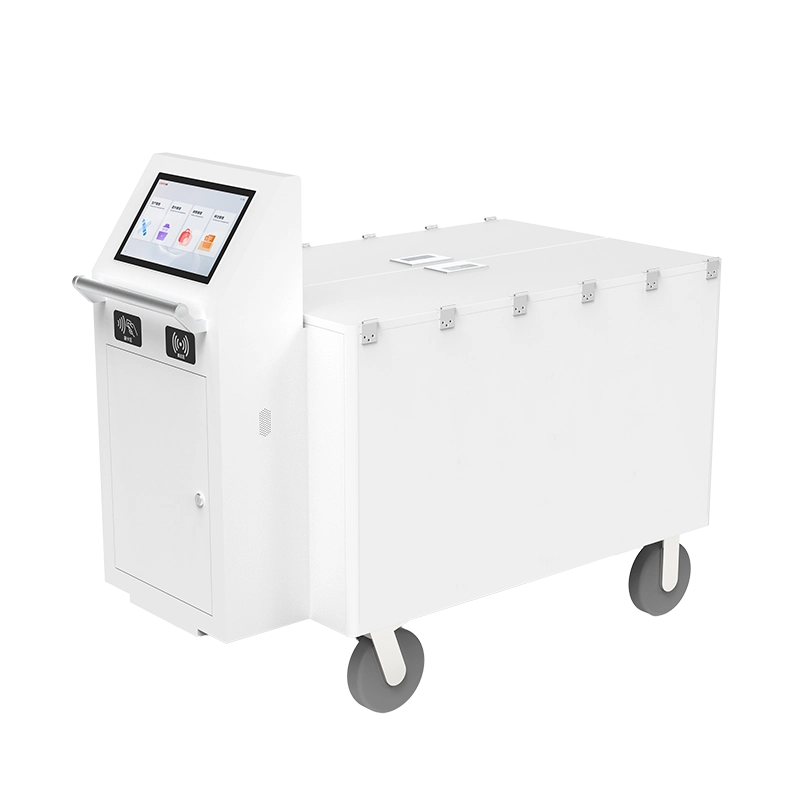

The LB-DO1 RFID garment sorting cart is a high-capacity, highly integrated RFID intelligent sorting and transport vehicle. It is mainly divided into a main unit operation area and an RFID bulk goods identification area. The identification area can be customized according to the business volume (100-300 pieces) and can be quickly replaced. The equipment integrates a 21.5-inch capacitive touch screen, RFID tag individual identification, an RFID bulk goods identification area, and a card swiping area (authentication), providing integrated operation for convenience and speed. It also comes standard with 5-inch omnidirectional wheels for easy and fast transport of garments between floors.
The system supports network communication and includes RFID garment sorting cart terminal software, which can work with an RFID garment management platform to complete functions such as garment quality inspection (bulk goods identification), production warehousing, washing warehousing, repair warehousing, and damage reporting warehousing.
Supports bulk garment identification, with second-level sensing and item recognition.
Card swiping.
Garment production workshops, finished garment warehouses.
Compatible with delivery vehicles, enabling the location transfer of large quantities of goods.
| Product Model | LB-D01 |
| Control System | Android7.1 |
| RFID Protocol Standard | ISO18000-6C |
| RFID Operating Frequency | 840-960MHz (adjustable) |
| Display Screen | 21.5-inch capacitive touchscreen |
| Communication Interface | WIFI、RJ45 |
| Work Environment | Temperature: -10℃~45℃ Relative Humidity: 20%~90%RH (non-condensing) |
| Storage Environment | Temperature: -20℃~60℃ Relative Humidity: 10%~95%RH (non-condensing) |
| Working Power Supply | AC220V+10% |
| External Dimensions | 1420mm*800mm*1250mm (Length*Width*Height) |
| Product Weight | Approximately 100kg |

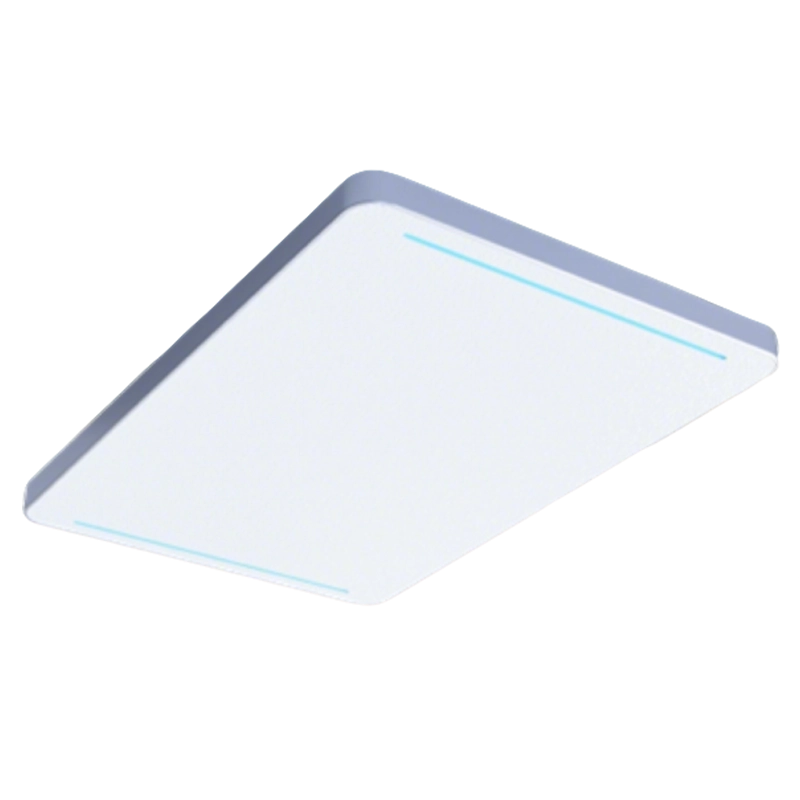

The SG-60 RFID smart anti-theft access control system (ceiling-mounted) is a slim and stylish device that breaks free from the constraints of traditional access control systems. Its ceiling-mounted design simplifies installation and wiring, allowing it to blend seamlessly into environments such as libraries, retail stores, warehouses, and office buildings.
The system supports Ethernet communication and comes with RFID anti-theft reader software. It can be used with an RFID clothing management platform to perform functions such as foot traffic statistics, burglar alarms, garment lifecycle tracking, and can also be integrated with cameras for alarm capture functionality.
Supports simultaneous reading of multiple tags, reducing the theft rate of finished garments and sample garments.
Requires fewer security personnel and facilities, reducing labor costs.
Employs dual-radar triggered RFID reading with alarm indicator lights, ensuring safety and reliability.
Can be linked with access control systems for door opening and closing, and can monitor and trigger alarms and capture images.
|
Product Model |
SG-60 |
|
RFID Protocol Standard |
ISO18000-6C |
|
RFID Operating Frequency |
902-928MHz (adjustable) |
|
Communication Interface |
WIFI、RJ45 |
|
Work Environment |
Temperature: -20°C to 50°C; Relative Humidity: 5% to 95%RH (non-condensing) |
|
Storage Environment |
Temperature: -40°C to 70°C; Relative Humidity: 5% to 95%RH (non-condensing) |
|
Power Input |
AC220V |
|
Equipment Weight |
3.6kg |
|
External Dimensions |
466x295x68mm |
|
Color Version |
White |

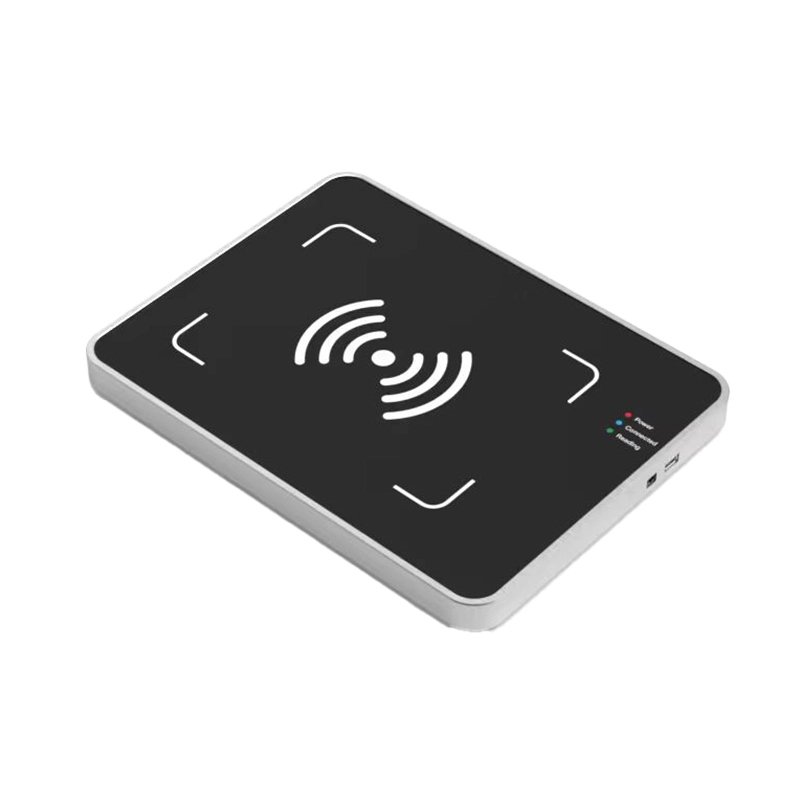

| Identification Method | UHF RFID |
| Operating Frequency | 840MHz-960MHz |
| Tag Reading and Writing | Batch Read/Batch Write |
| Output Power | 0-33dBm (step size ±1dBm adjustable) |
| Number of Tags | ≤100pcs (related to label performance, the material, quantity, and type of items being managed) |
| Identification Range | Perimeter ≤ 10cm, height ≤ 50cm (related to label performance, material, quantity, and type of items being managed) |
| Link Method | RS232 serial port |
| Communication Methods | RS232 serial to USB |
| Development and Integration | Provide SDK/API development kit |
| Shell Material | High-hardness aluminum profile frame, high-quality carbon steel plate and tempered glass |
| External Dimensions | 520*402*32mm |
| Weight | 7kg |
| Operating Temperature | -20°C ~ +70°C |
| Storage Temperature | -40°C ~ +85°C |
| Operating Humidity | < 95% ( +25°C) |
