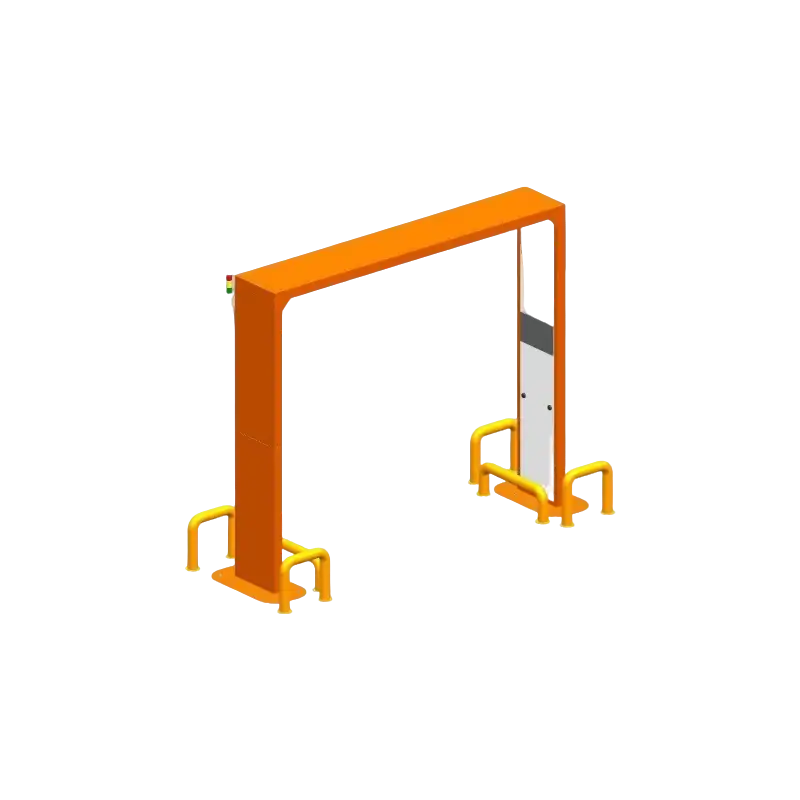

The RFID gantry is a large-scale RFID access control device for warehouses, suitable for installation at the entrances of large warehouses. It is compatible with forklift entry and exit, and is suitable for quickly recording the entry and exit of large stored goods, such as emergency supplies, home furnishings, and palletized goods. The product is equipped with 6 narrow-beam antennas, ensuring a controllable radio frequency range and preventing cross-reading within the warehouse, resulting in high accuracy. Goods can be quickly identified and displayed interactively on a screen. The product is suitable for identification at various warehouse entrances and exits, enabling efficient and traceable management of RFID goods.
|
Identification Method |
UHF RFID |
|
Touch Screen Spec |
15.6-inch capacitive touch screen |
|
Operating System |
Android |
|
System Configuration |
RK3568, 2G+32G |
|
RF Protocol Standard |
ISO 18000-6C |
|
Operating Frequency |
840-960MHz |
|
Antenna Quantity |
6 antennas, 12dB antenna gain (customizable) |
|
Identification Power |
0-33dBm (adjustable in steps of ±1dBm) |
|
Read/Write Tag Quantity |
Max.100 electronic tags (depends on tag performance/orientation, material/quantity of managed items, and movement speed) |
|
Read/Write Function |
Supports multi-tag identification, tag data filtering, and RSSI signal strength sensing |
|
Trigger Function |
Infrared-triggered reading |
|
Alarm Indicator |
1 tri-color indicator light |
|
Communication Method |
Ethernet port, USB, WIFI |
|
Overall Dimensions (WHD) |
3500mm*2600mm*60mm (customizable) |
|
Operating Temperature |
-20°C — 60°C |
|
Storage Temperature |
-20°C — 60°C |
|
Operating Voltage |
AC 220V 50Hz |
